Mould Flow Analysis (NX & AUTODESK)

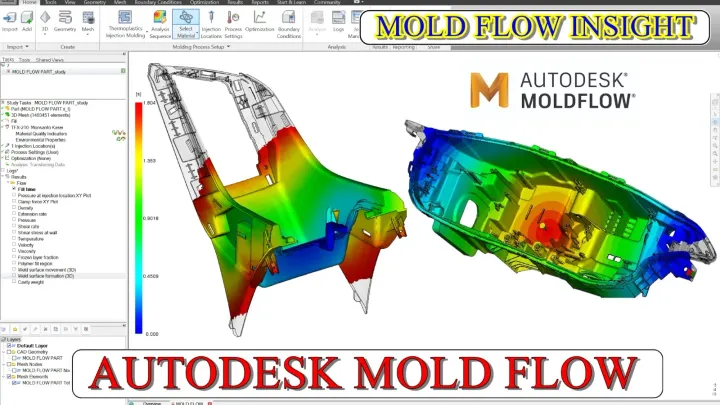

A practical plastic flow-simulation course using Autodesk Moldflow alongside Siemens NX. Backed by a Moldflow design guide and ebooks, it teaches how to simulate the injection process — fill, pack, cooling, warpage, weld lines and air traps — so mould and part problems are caught before cutting steel.
4.7 (699 reviews)
3,007+ learners enrolled
Course curriculum
- 📍 Software & Library Installation
- Easy Fill advance link download & Library
- Mouldflow Insight & Synergy Link Download
- Mouldflow Advisor Link download
- Google Drive Link to Download Crack Software
- 📍 Moldflow Design guide
- Moldflow PPT for DFMFA (Design Failure Mode and Effects Analysis)
- Mouldflow Design Guide Ebooks
- 📍 Lecture 1
- Sprue Runner Gate design by Wizards
- All types of Gate design & Calculations
- Lecture 1
- 📍 Lecture 2
- Banana gate design standard
- Concept of Gates & Types of gate design in injection mould design
- Submarine Gate Design standards
- Spoke Gate Design standards
- Pin Point Gate Design standards
- Fan Gate Design standards
- Edge or Side Gate Design standards
- 📍 Lecture 3
- Engine Guard component mould flow analysis (Automobile Part)
- ENGINE GUARD part file
- 📍 Lecture 4
- Cooling Channel design for Cooling channel Flow temperature analysis
- Cooling Calculations and type of Cooling in Plastic injection mould design
- 📍 Lecture 5
- Rectangular Cooling method in plastic flow analysis
- Cavity Core & Plate
- 📍 Lecture 6
- How to Design a Series cooling Channel in Injection Mould
- IMPRLLER Mould
- 📍 Lecture 7
- Easy Fill advance flow analysis
- Files 1
- Files 2
- Files 3
- Files 4
- MFA REPORT
- 📍 Lecture 8
- Toilet Seat cover mold flow analysis
- Component, Toilet Seat & Gate
- COMPONENT
- Component
- 📍 Lecture 9
- Tractor part mouldflow advsior analysis
- 📍 Lecture 10
- Mahindra Tractor part Number of Hot runner gate analysis
- Mahindra Tractor Component & Gate Files
- 📍 Lecture 11
- Mahindra Tractor Component Files
- Identify best gate location in Plastic mold flow analysis
- Tractor front Grill component flow analysis
- Mould flow defects & Improvements
- summary
- Files
- 📍 Lecture 12
- Design a mold insert & Mold cooling channel in Autodesk mould flow
- Files
- Homework, Component & Fan New Study
- 📍 Lecture 13
- Electrical Socket cover box & Multi cavity mould flow analysis
- Mould flow results report & Failure mode analysis
- Files
- 📍 Lecture 14
- Cable tie multi cavity runner balancing case for Flow analysis
- 📍 Lecture 15
- Cable tie multi thickness area Temperature analysis for Flow chart
- 📍 Lecture 16
- Report study & Part weight amangements
- Component & Cooling IGES
- 📍Lecture 17
- Introduction to meshing in autodesk
- Plastic part meshing and meshing limitation in autodesk and hypermesh
- 📍 Lecture 18 (moldflow insight Meshing)
- Autodesk insight meshing details for accuracy in flow analysis
- Meshing File data
- Honda Part 30% GF
- Moldflow Meshing (method 1)
- Mouldflow meshing (method)
- 📍 Lecture 19
- Insight file & reports
- MOLD FLOW PART
- Automobile part offset gating (important Lecture)
- Material study & Properties Customizations
- 📍 Lecture 20
- united part
- united
- Pin point gate with offset gate case deflection mold flow analysis
- 📍 Lecture 21
- File
- Sequence gate or Valve gate analysis
